1/8" Magnetic, ø25mm

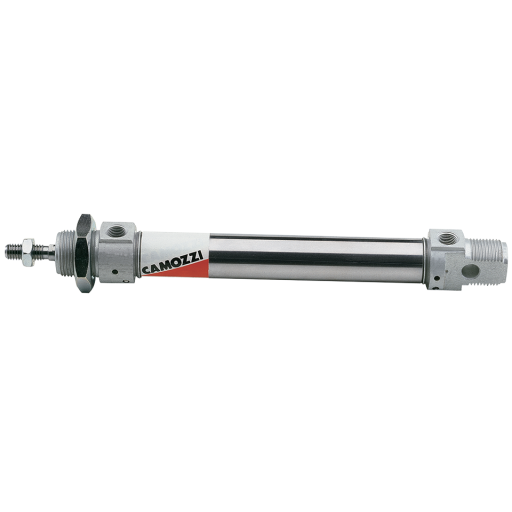

Series 24 Double Acting ISO6432 Cylinders, Camozzi - 1/8" Magnetic, ø25mm

Viewing 14 of 14

Single and double-acting Standard CETOP RP52P DIN/ISO 6432 Stainless steel rod and tube Anodized AL end-blocks [B]Type of construction: [B]flanged [B]Operation:[B] single-acting or double-acting [B]Materials:[B] end-blocks = anodized AL, tube and rod = stainless steel, piston = AL, seals = NBR - PU, other parts = see coding [B]Brackets: [B]screw, flange, feet, trunnion [B]Stroke min – max:[B] ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm [B]Bores:[B] ø 16, 20, 25 [B]Operating temperature: [B]0°C to 80°C (with dry air -20°C) [B]Operating pressure: [B]1 to 10 bar (double-acting); 2 to 10 bar (single-acting) [B]Fluid: [B]Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted. [B]Speed: [B]10 to 1000 mm/sec (without load)

Product Information

TECH SHEET - TS1844

Product Code	Description	List Price (£)
24N2A25A010	10	59.93
24N2A25A025	25	60.93
24N2A25A040	40	62.24
24N2A25A050	50	63.04
24N2A25A080	80	65.34
24N2A25A100	100	66.32
24N2A25A125	125	69.71
24N2A25A160	160	72.61
24N2A25A200	200	77.02
24N2A25A250	250	82.37
24N2A25A300	300	87.51
24N2A25A320	320	89.46
24N2A25A400	400	97.22
24N2A25A500	500	105.60

Product Code 24N2A25A010 Description 10 List Price (£) 59.93 Qty
Product Code 24N2A25A025 Description 25 List Price (£) 60.93 Qty
Product Code 24N2A25A040 Description 40 List Price (£) 62.24 Qty
Product Code 24N2A25A050 Description 50 List Price (£) 63.04 Qty
Product Code 24N2A25A080 Description 80 List Price (£) 65.34 Qty
Product Code 24N2A25A100 Description 100 List Price (£) 66.32 Qty
Product Code 24N2A25A125 Description 125 List Price (£) 69.71 Qty
Product Code 24N2A25A160 Description 160 List Price (£) 72.61 Qty
Product Code 24N2A25A200 Description 200 List Price (£) 77.02 Qty
Product Code 24N2A25A250 Description 250 List Price (£) 82.37 Qty
Product Code 24N2A25A300 Description 300 List Price (£) 87.51 Qty
Product Code 24N2A25A320 Description 320 List Price (£) 89.46 Qty
Product Code 24N2A25A400 Description 400 List Price (£) 97.22 Qty
Product Code 24N2A25A500 Description 500 List Price (£) 105.60 Qty
