1/8" Magnetic, ø20mm

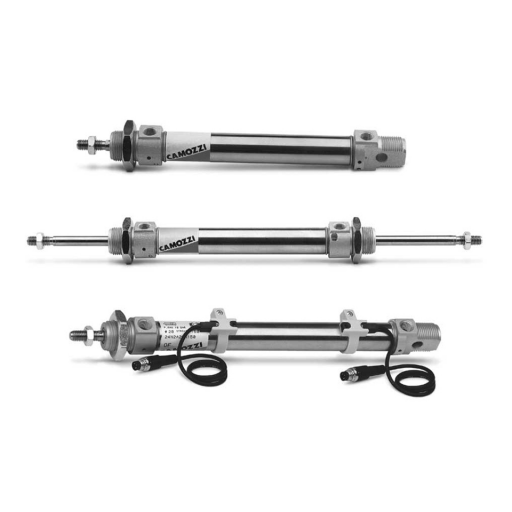

Series 24 Double Acting ISO6432 Cylinders, Camozzi - 1/8" Magnetic, ø20mm

Viewing 11 of 11

Single and double-acting Standard CETOP RP52P DIN/ISO 6432 Stainless steel rod and tube Anodized AL end-blocks [B]Type of construction: [B]flanged [B]Operation:[B] single-acting or double-acting [B]Materials:[B] end-blocks = anodized AL, tube and rod = stainless steel, piston = AL, seals = NBR - PU, other parts = see coding [B]Brackets: [B]screw, flange, feet, trunnion [B]Stroke min – max:[B] ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm [B]Bores:[B] ø 16, 20, 25 [B]Operating temperature: [B]0°C to 80°C (with dry air -20°C) [B]Operating pressure: [B]1 to 10 bar (double-acting); 2 to 10 bar (single-acting) [B]Fluid: [B]Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted. [B]Speed: [B]10 to 1000 mm/sec (without load)

Product Information

TECH SHEET - TS1844

Product Code	Description	List Price (£)
24N2A20A010	10	53.44
24N2A20A025	25	54.78
24N2A20A040	40	55.54
24N2A20A050	50	56.77
24N2A20A080	80	59.93
24N2A20A100	100	62.24
24N2A20A125	125	63.04
24N2A20A160	160	65.34
24N2A20A200	200	69.71
24N2A20A250	250	73.94
24N2A20A300	300	78.18

Product Code 24N2A20A010 Description 10 List Price (£) 53.44 Qty
Product Code 24N2A20A025 Description 25 List Price (£) 54.78 Qty
Product Code 24N2A20A040 Description 40 List Price (£) 55.54 Qty
Product Code 24N2A20A050 Description 50 List Price (£) 56.77 Qty
Product Code 24N2A20A080 Description 80 List Price (£) 59.93 Qty
Product Code 24N2A20A100 Description 100 List Price (£) 62.24 Qty
Product Code 24N2A20A125 Description 125 List Price (£) 63.04 Qty
Product Code 24N2A20A160 Description 160 List Price (£) 65.34 Qty
Product Code 24N2A20A200 Description 200 List Price (£) 69.71 Qty
Product Code 24N2A20A250 Description 250 List Price (£) 73.94 Qty
Product Code 24N2A20A300 Description 300 List Price (£) 78.18 Qty
