Econoloc gas springs eliminate the need for separate safety rods in critical lift-assist applications. They positively lock when fully extended, protecting the operator from potential injury in the event of overload or misuse.
[B]Type:[B] Variable force.
[B]Rod Diameter:[B] 8mm
[B]Tube Diameter:[B] 18mm
[B]Force Range: [B]100-650N
[B]Material: [B]Nitrided steel piston rod, black powder coated steel tube,
nylon/steel end connectors.

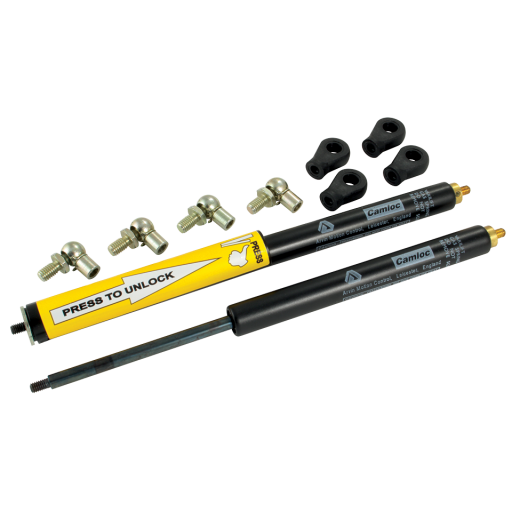

Boxed as a pair; comprising 1 x Econoloc safety shroud and 1 x standard
Swift & Sure spring, they come fitted with FLO-B2 end fittings and are gassed to maximum pressure. They are supplied with additional FLO-E3 end fittings, instructions and an allen key for adjusting force in-situ.
End to end measurement - shoulder to shoulder -
not including the threaded ends. From the end of the tube (thicker part) to the end of the rod (thinner part).
