Section 19 - Festo
>
Valves
>
Proportional valves
>
Valve units VPCB
Refine Products
Attributes
Valve function
3-way proportional-pressure regulator ( 2 items )
Design structure
Piston slide. With built-in pressure sensors ( 2 items )
Type of piloting
direct ( 2 items )
Type of actuation
electrical ( 2 items )
Type of reset
Magnetic spring ( 2 items )
Flow direction
non reversible ( 2 items )
Assembly position
Any ( 2 items )
Sealing principle
Hard ( 2 items )
Nominal size
6mm ( 2 items )
Short circuit strength
Yes ( 2 items )
Type of display
LED ( 2 items )
Standard nominal flow rate
725l/min ( 2 items )
Working pressure
4-8bar ( 2 items )
Typical lowering speed
15mm/s ( 2 items )
Information on lowering speed
On actuating the manual vent with 80 mm cylinder diameter, 1:1 transmission ratio and 100 kg load. ( 2 items )
Ambient temperature
0-50°C ( 2 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [6:4:4] ( 2 items )
Note on operating and pilot medium
Lubricated operation not possible. Maximum particle size: 5 µm ( 2 items )
Protection class
IP65 ( 2 items )
Note on degree of protection
in assembled condition ( 2 items )
Authorization
RCM Mark ( 2 items )
KC mark
KC-EMV ( 2 items )
CE symbol (see declaration of conformity)
according to EU-EMV guideline ( 2 items )
Materials note
Conforms to RoHS ( 2 items )
Vibration resistance
Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 ( 2 items )
Shock resistance
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 ( 2 items )
Corrosion resistance classification CRC
1 - Low corrosion stress ( 2 items )
Instructions for use
The product is suitable for industrial purposes only. Measures for interference suppression may be required in residential areas. ( 2 items )
Nominal operating voltage DC
24V ( 2 items )
Operating voltage range DC
21.6-26.4V ( 2 items )
Residual ripple
5 % ( 2 items )
Max. current consumption
1.2A ( 2 items )
Current consumption
120 mA ( 2 items )
Polarity protected
for operating voltage ( 2 items )
Duty cycle
100 % ( 2 items )
Max. electrical power consumption
33.5W ( 2 items )
Diagnosis function
Display via LED ( 2 items )
Max. line length
30 m ( 2 items )
Fieldbus interface, type of connection
Plug ( 2 items )
Fieldbus interface, connection technology
M12x1, A-coded in accordance with EN 61076-2-101 ( 2 items )
Fieldbus interface, number of pins/wires
5 ( 2 items )
Fieldbus interface, protocol
CAN bus with Festo protocol ( 2 items )
Electrical connection for drive, connection type
Plug socket ( 2 items )
Electrical connection for drive, connection technology
M12x1, A-coded in accordance with EN 61076-2-101 ( 2 items )
Electrical connection for drive, number of pins/wires
8 ( 2 items )
Electrical connection for valve, connection type
Plug ( 2 items )
Electrical connection for valve, connection technology
Connection pattern type C to industry standard, 9.4 mm ( 2 items )
Electrical connection for valve, number of pins/wires
2 ( 2 items )
Mounting type
Direct mounting via M5 thread ( 2 items )
Pneumatic connection, port 1
G3/8 ( 2 items )
Pneumatic connection, port 2
G3/8 ( 2 items )
Pneumatic connection, port 3
G3/8 ( 2 items )
Pneumatic connection for control element
G1/8 ( 2 items )
Product weight
1550g ( 2 items )
Material housing
Anodised wrought aluminium alloy ( 2 items )
Material seals
FPM. HNBR. NBR ( 2 items )
Proportional valves - Valve units VPCB
Viewing 2 of 2

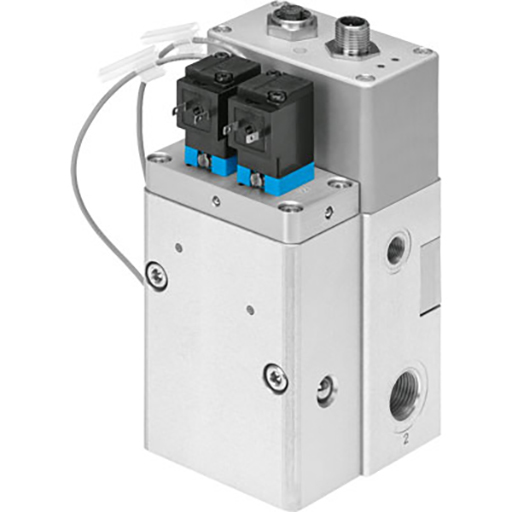

Proportional valves - Valve units VPCB
valve unit
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
8071579
VPCB-6-L-8-G38-10-F-D3-T22-M valve unit
2,617.17
5318141
VPCB-6-L-8-G38-10-F-D3-T22 valve unit
2,487.58
Product Code
8071579
Description
List Price (£)
2,617.17
Qty
Product Code
5318141
Description
List Price (£)
2,487.58
Qty
