Section 19 - Festo
>
Valves
>
Electrically and pneumatically actuated directiona
>
Valves per ISO \ VDMA \ VDE \ VDI standards
>
Standard Namur valves (VDE/VDI 3845)
Refine Products
Attributes
Valve function
5/2-way or 3/2-way, single solenoid ( 1 items )
Type of actuation
electrical ( 1 items )
Width
53mm ( 1 items )
Standard nominal flow rate
900l/min ( 1 items )
Working pressure
2-10bar ( 1 items )
Design structure
Poppet seat ( 1 items )
Type of reset
mechanical spring ( 1 items )
CE symbol (see declaration of conformity)
according to EU-Ex protection guideline (ATEX) ( 1 items )
ATEX category Gas
II 2G ( 1 items )
ATEX category Dust
II 2D ( 1 items )
Explosion ignition protection type Gas
Ex h IIC T6 Gb ( 1 items )
Explosion ignition protection type Dust
Ex h IIIC T70°C Db ( 1 items )
Explosion-proof ambient temperature
-5°C <= Ta <= +40°C ( 1 items )
Nominal size
7mm ( 1 items )
Exhaust-air function
throttleable ( 1 items )
Sealing principle
soft ( 1 items )
Assembly position
Any ( 1 items )
Conforms to standard
VDI/VDE 3845 (NAMUR) ( 1 items )
Manual override
detenting. Pushing ( 1 items )
Type of piloting
Piloted ( 1 items )
Flow direction
non reversible ( 1 items )
Lap
Underlap ( 1 items )
b value
0.33 ( 1 items )
C value
4.2l/sbar ( 1 items )
Switching time off
100ms ( 1 items )
Switching time on
50ms ( 1 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:4:4] ( 1 items )
Note on operating and pilot medium
Lubricated operation possible (subsequently required for further operation) ( 1 items )
Corrosion resistance classification CRC
1 - Low corrosion stress ( 1 items )
Medium temperature
-5-40°C ( 1 items )
Ambient temperature
-5-40°C ( 1 items )
Product weight
280g ( 1 items )
Mounting type
on manifold rail ( 1 items )
Scavenging orifice connection
Internal ( 1 items )
Pilot exhaust port 84
M5 ( 1 items )
Pneumatic connection, port 1
G1/4 ( 1 items )
Pneumatic connection, port 2
NAMUR port pattern ( 1 items )
Pneumatic connection, port 3
G1/4 ( 1 items )
Pneumatic connection, port 4
NAMUR port pattern ( 1 items )
Pneumatic connection, port 5
G1/4 ( 1 items )
Material seals
NBR ( 1 items )
Material housing
Aluminum die cast ( 1 items )
Valves per ISO \ VDMA \ VDE \ VDI standards - Standard Namur valves (VDE/VDI 3845)
Viewing 1 of 1
Valves per ISO \ VDMA \ VDE \ VDI standards - Standard Namur valves (VDE/VDI 3845)
solenoid valve
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
535987

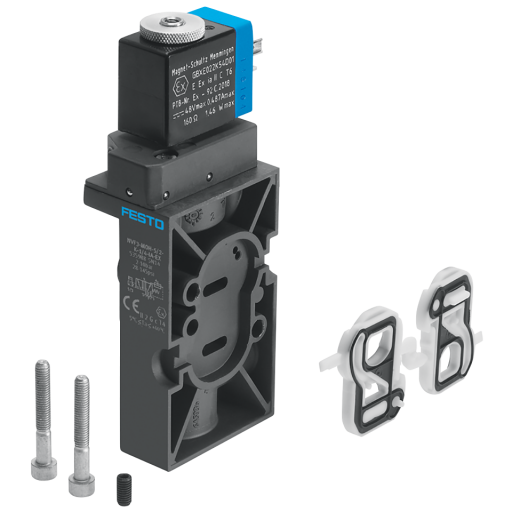

NVF3-MOH-5/2-K-1/4-EX solenoid valve
136.01
Product Code
535987
Description
List Price (£)
136.01
