Section 19 - Festo
>
Valves
>
Accessories for valves
>
Valve-specific accessories
>
Setpoint module MPZ
Refine Products
Attributes
Display, active set point
Yellow LED ( 1 items )
Ready status display
Green LED ( 1 items )
Operating voltage range DC
20-30V ( 1 items )
Input resistance, external set point input
Typically 100 kOhm ( 1 items )
Input resistance, set point input
3kOhm ( 1 items )
adjustable output voltage
0-10V ( 1 items )
Power consumption at 24VDC
1.5W ( 1 items )
Max. output current
27mA ( 1 items )
Residual ripple
10 % ( 1 items )
Voltage, external set point input
0-10V ( 1 items )
Supply voltage set value setting
10-10.6V ( 1 items )
Supply current set value setting
6-6.36mA ( 1 items )
Potentiometer, external set point input
2.5-10kOhm ( 1 items )
Authorization
C-Tick ( 1 items )
CE symbol (see declaration of conformity)
according to EU-EMV guideline ( 1 items )
Corrosion resistance classification CRC
2 - Moderate corrosion stress ( 1 items )
Protection class
IP20 ( 1 items )
Ambient temperature
0-60°C ( 1 items )
Assembly position
Any ( 1 items )
Product weight
80g ( 1 items )
Terminal cross-section
2.5mm2 ( 1 items )
Electrical connection
Screwed terminal ( 1 items )
Mounting type
with top-hat rail ( 1 items )
Valve-specific accessories - Setpoint module MPZ
Viewing 1 of 1
Valve-specific accessories - Setpoint module MPZ
setpoint module
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
546224

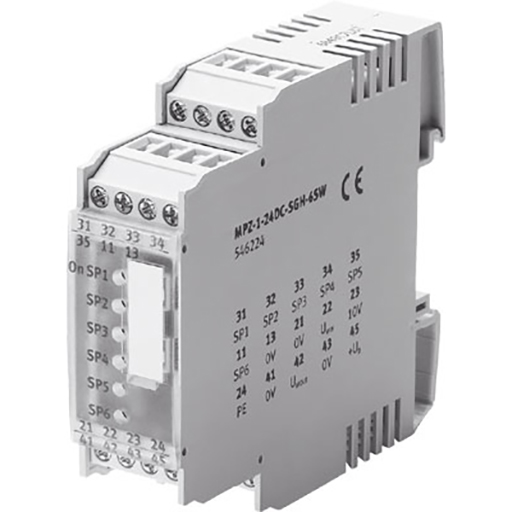

MPZ-1-24DC-SGH-6-SW setpoint module
423.30
Product Code
546224
Description
List Price (£)
423.30
Qty
