Section 19 - Festo
>
Valves
>
Accessories for valves
>
Manifold sub-bases
>
Manifold sub-bases to ISO 5599-1
Refine Products
Attributes
Width
44mm ( 1 items )
59mm ( 1 items )
Exhaust-air function
Via throttle plate ( 2 items )
Based on the standard
ISO 5599-1 ( 2 items )
Max. number of valve positions
1 ( 2 items )
Working pressure
0-10bar ( 2 items )
Suitability for vacuum
Yes ( 2 items )
CE symbol (see declaration of conformity)
according to EU low voltage guideline ( 2 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:4:4] ( 2 items )
Note on operating and pilot medium
Lubricated operation possible (subsequently required for further operation) ( 2 items )
Corrosion resistance classification CRC
0 - No corrosion stress ( 2 items )
Storage temperature
-20-60°C ( 2 items )
Medium temperature
-10-50°C ( 2 items )
Pilot medium
Compressed air in accordance with ISO8573-1:2010 [7:4:4] ( 2 items )
Ambient temperature
-10-50°C ( 2 items )
Product weight
490g ( 1 items )
670g ( 1 items )
Pneumatic connection, port 2
G3/8 ( 1 items )
G1/2 ( 1 items )
Pneumatic connection, port 4
G3/8 ( 1 items )
G1/2 ( 1 items )
Materials note
Conforms to RoHS ( 2 items )
Material of connecting plate
Aluminum die cast ( 2 items )
Manifold sub-bases - Manifold sub-bases to ISO 5599-1
Viewing 2 of 2
Manifold sub-bases - Manifold sub-bases to ISO 5599-1

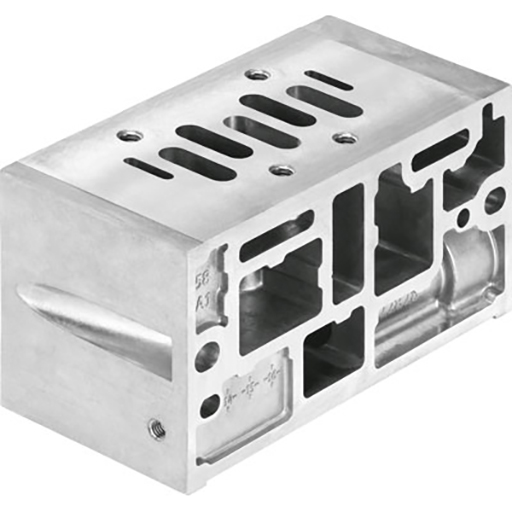

manifold sub-base
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
8029814
VABV-S1-2SB-G12 manifold sub-base
43.44
8029812
VABV-S1-1SB-G38 manifold sub-base
33.41
Product Code
8029814
Description
List Price (£)
43.44
Qty
Product Code
8029812
Description
List Price (£)
33.41
Qty
