Section 19 - Festo
>
Valve terminals
>
Electrical peripherals
>
For CPX terminal
Refine Products
Attributes
Dimensions W x L x H
50 mm x 107 mm x 55 mm ( 1 items )
50 mm x 107 mm x 70 mm. (incl. interlinking block and connection technology) ( 1 items )
Diagnosis
Channel and module-oriented diagnostics ( 1 items )
parameterisation error. Wire break per channel. Critical limit violation as per NE43 per channel. Critical limit violation per channel. Short circuit/overload per channel. Overflow/underflow ( 1 items )
Short circuit strength
Yes ( 1 items )
Device-specific diagnostics
Undervoltage measuring system. Undervoltage modules. Via local 7 segment display ( 1 items )
Max. no. of modules
9 ( 1 items )
Display
Seven-segment display ( 1 items )
Status displays
LED yellow = PL (power load). LED red = error ( 1 items )
Operating voltage range DC
18-30V ( 2 items )
Nominal operating voltage DC
24V ( 2 items )
Power failure buffering
10ms ( 2 items )
Current consumption at nominal operating voltage
80mA ( 1 items )
Authorization
C-Tick ( 1 items )
Storage temperature
-20-70°C ( 2 items )
Relative air humidity
5 - 95 %. non-condensing ( 1 items )
95 %. non-condensing ( 1 items )
Protection class
IP65. to IEC 60529 ( 1 items )
Depending on the connection block ( 1 items )
Ambient temperature
-5-50°C ( 2 items )
Product weight
140g ( 1 items )
77.4g ( 1 items )
Axes per string
1 ( 1 items )
Number of axis strings
1 ( 1 items )
Max. line length
30 m ( 1 items )
500 m ( 1 items )
Control interface electrical connection
M9. 5-pin. Plug socket ( 1 items )
Control interface
Digital. CAN bus with Festo protocol ( 1 items )
Materials note
Conforms to RoHS ( 2 items )
Material housing
PA-reinforced ( 1 items )
PC. PA-reinforced ( 1 items )
Grid dimension
50mm ( 1 items )
Number of selectable analogue inputs/outputs
4 ( 1 items )
Parameters configuring
Polarity protected
for all electrical connections ( 1 items )
Control elements
DIL switches ( 1 items )
LED displays
1 group diagnostics. 4 channel diagnostics. 4 channel status ( 1 items )
Repetition accuracy
0.05% at 25º C ( 1 items )
Protection (short circuit)
Internal electronic fuse protection per channel ( 1 items )
Intrinsic current consumption at operating voltage
Typ. 170 mA ( 1 items )
Operating error limit related to the ambient temperature range
±0,3 % ( 1 items )
Basic error limit at 25°C
±0,1 % ( 1 items )
Electrical isolation channel – internal bus
Yes ( 1 items )
Electrical isolation channel – channel
No ( 1 items )
CE symbol (see declaration of conformity)
according to EU-EMV guideline ( 1 items )
Vibration resistance
Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 ( 1 items )
Shock resistance
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 ( 1 items )
Corrosion resistance classification CRC
(when installed). 1 - Low corrosion stress ( 1 items )
Max. load
750Ohm ( 1 items )
Max. input resistance
300Ohm ( 1 items )
Max. short circuit current
22mA ( 1 items )
Max. open circuit voltage
28.8V ( 1 items )
Min. available sensor voltage
20.7 V at 20 mA ( 1 items )
Signal range
0 - 20 mA. 4 - 20 mA. 4 - 20 mA with HART ( 1 items )
Data format
15 bits + prefix. Can be scaled to 15 bit ( 1 items )
Protocol
HART ( 1 items )
Sensor types
0 - 20 mA. 4 - 20 mA. 4 - 20 mA with HART ( 1 items )
Mounting type
On interlinking block ( 1 items )
Electrical peripherals - For CPX terminal
Viewing 2 of 2
Electrical peripherals - For CPX terminal
input module
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
567417
CPX-CMIX-M1-1 measuring module
349.10
8059847

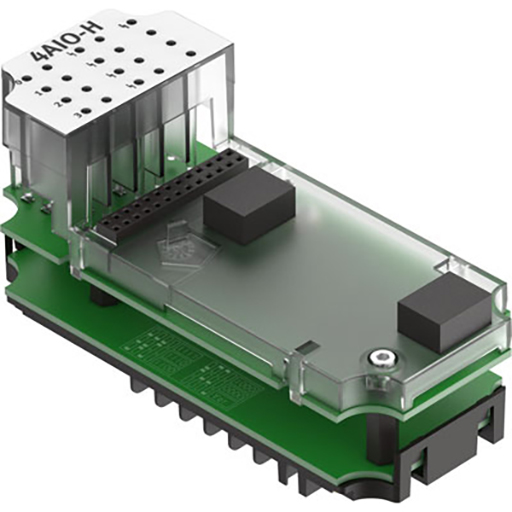

CPX-4AE-4AA-H input module
522.10
Product Code
567417
Description
List Price (£)
349.10
Qty
Product Code
8059847
Description
List Price (£)
522.10
