Section 19 - Festo
>
Electric cables and connectors
>
Plug connectors
>
Universal plug connector
>
NEDU
Refine Products
Attributes
Based on the standard
EN 61076-2-101 ( 1 items )
Design structure
Y-distributor with cable on controller side ( 1 items )
Distributor type
1 to 2 ( 1 items )
Additional functions
Additional supply for port B ( 1 items )
Cable identification
Without inscription label holder ( 1 items )
Connection frequency
100 ( 1 items )
Product weight
72.5g ( 1 items )
Electrical connection 1, function
Field device side ( 1 items )
Electrical connection 1, design
Round ( 1 items )
Electrical connection 1, connection type
Plug socket ( 1 items )
Electrical connection 1, cable outlet
Straight ( 1 items )
Electrical connection 1, connection technology
M12x1, A-coded in accordance with EN 61076-2-101 ( 1 items )
Electrical connection 1, number of pins/wires
5 ( 1 items )
Electrical connection 1, occupied pins/wires
5 ( 1 items )
Electrical connection 1, type of mounting
Screw-type lock with 18 mm A/F hexagon and longitudinal knurl ( 1 items )
Electrical connection 2, function
IO-Link. Communication ( 1 items )
Electrical connection 2, design
Round ( 1 items )
Electrical connection 2, connection type
Plug ( 1 items )
Electrical connection 2, cable outlet
Straight ( 1 items )
Electrical connection 2, connection technology
M12x1, A-coded in accordance with EN 61076-2-101 ( 1 items )
Electrical connection 2, number of pins/wires
3 ( 1 items )
Electrical connection 2, occupied pins/wires
3 ( 1 items )
Electrical connection 2, type of mounting
Screw-type lock with 13 mm A/F hexagon and longitudinal knurl ( 1 items )
Electrical connection 3, function
Additional power supply ( 1 items )
Electrical connection 3, connection type
2 single wires ( 1 items )
Electrical connection 3, connection technology
Open end ( 1 items )
Electrical connection 3, number of pins/wires
2 ( 1 items )
Electrical connection 3, occupied pins/wires
2 ( 1 items )
Operating voltage range DC
0-30V ( 1 items )
Nominal operating voltage DC
24V ( 1 items )
Acceptable current load at 40°C
4A ( 1 items )
Surge strength
0.8kV ( 1 items )
Protective earth connection
Not available ( 1 items )
Shielding
No ( 1 items )
Cable length 1
1m ( 1 items )
Cable length 2
1m ( 1 items )
Cable attribute
For static applications ( 1 items )
Bending radius 1, fixed cable installation
>= 11,7 mmmm ( 1 items )
Bending radius 2, fixed cable installation
>= 6 mmmm ( 1 items )
Cable diameter 1
3.8mm ( 1 items )
Tolerance for cable diameter 1
± 0,1 mm ( 1 items )
Cable diameter 2
1.75mm ( 1 items )
Tolerance for cable diameter 2
± 0,05 mm ( 1 items )
Cable design 1
3x0,25 ( 1 items )
Cable design 2
2x0,5 ( 1 items )
Nominal conductor cross-section
0.5. 0.25mm2 ( 1 items )
Protection class
IP65. IP68. IP69K ( 1 items )
Note on degree of protection
in assembled condition. IP40 for socket M12 ( 1 items )
Ambient temperature
-30-80°C ( 1 items )
Storage temperature
-30-80°C ( 1 items )
CE symbol (see declaration of conformity)
in accordance with EU RoHS directive ( 1 items )
Materials note
Conforms to RoHS ( 1 items )
Degree of contamination
3 ( 1 items )
Corrosion resistance classification CRC
1 - Low corrosion stress ( 1 items )
Material cable sheath
TPE-U(PUR) ( 1 items )
Cable sheath color
Grey ( 1 items )
Material housing
PA. TPE-U(PUR) ( 1 items )
Housing color
Black ( 1 items )
Material screw-type lock
Nickel-plated brass. Nickel-plated die-cast zinc ( 1 items )
Material seals
NBR ( 1 items )
Material electrical contact
Nickel-plated and gold-plated bronze. Brass, gold-plated ( 1 items )
Material insulation
PVC ( 1 items )

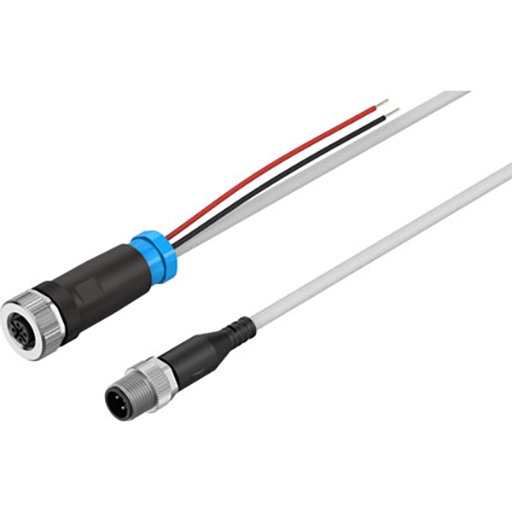

Universal plug connector - NEDU
Viewing 1 of 1
Universal plug connector - NEDU
distributor
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
8091516
NEDU-L1R2-M12G5-M12LE-1R distributor
32.03
Product Code
8091516
Description
List Price (£)
32.03
Qty
