Section 19 - Festo
>
Electric cables and connectors
>
Plug connectors
>
Plug connector for valves
>
NECA
Refine Products
Attributes
Mounting type
with through hole ( 3 items )
Product weight
60g ( 3 items )
Electrical connection 1
Socket, sub-D, 9-pin ( 3 items )
Electrical connection 2
Screw terminal, 9-pin ( 3 items )
Operating voltage range DC
21.6-26.4V ( 3 items )
Nominal operating voltage DC
24V ( 3 items )
Acceptable current load at 40°C
1A ( 3 items )
Permissible cable diameter
5-10mm ( 3 items )
Terminal cross-section
0.34-1mm2 ( 3 items )
Note on port cross section
0.34 - 0.5 mm² with wire end sleeve ( 3 items )
Protection class
IP65. to IEC 60529 ( 3 items )
Ambient temperature
0-50°C ( 3 items )
Storage temperature
-20-70°C ( 3 items )
Relative air humidity
95 %. non-condensing ( 3 items )
Corrosion resistance classification CRC
2 - Moderate corrosion stress ( 3 items )
Material housing
PA-reinforced ( 3 items )
Material of union nut
Brass ( 3 items )
Material screws
Steel ( 3 items )
Material seals
NBR ( 3 items )

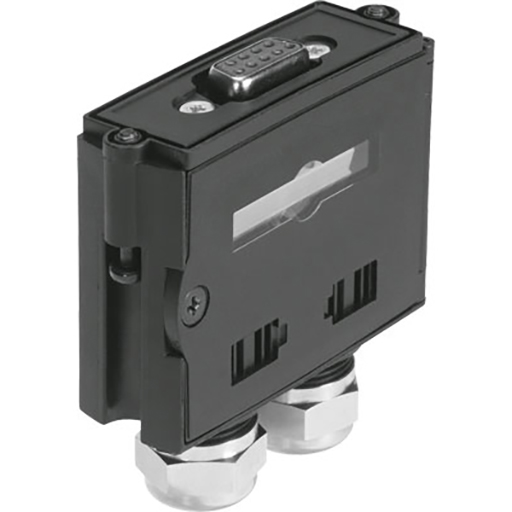

Plug connector for valves - NECA
Viewing 3 of 3
Plug connector for valves - NECA
multi-pin plug socket
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
573695
NECA-S1G9-P9-MP5 multi-pin plug socket
116.45
552703
NECA-S1G9-P9-MP3 multi-pin plug socket
79.23
548719
NECA-S1G9-P9-MP1 multi-pin plug socket
79.23
Product Code
573695
Description
List Price (£)
116.45
Qty
Product Code
552703
Description
List Price (£)
79.23
Qty
Product Code
548719
Description
List Price (£)
79.23
Qty
