Section 19 - Festo
>
Electric cables and connectors
>
Connecting cables
>
Connecting cables for controls
>
NEBP
Refine Products
Attributes
Additional functions
Product-specific pin allocation ( 1 items )
Cable identification
with accessories ( 1 items )
Product weight
160g ( 1 items )
Electrical connection 1, function
Field device side ( 1 items )
Electrical connection 1, design
Round ( 1 items )
Electrical connection 1, connection type
Plug socket ( 1 items )
Electrical connection 1, cable outlet
Angled ( 1 items )
Electrical connection 1, connection technology
M16x0,75 ( 1 items )
Electrical connection 1, number of pins/wires
6 ( 1 items )
Electrical connection 1, occupied pins/wires
4 ( 1 items )
Electrical connection 1, type of mounting
Screw lock ( 1 items )
Electrical connection 2, function
Controller side ( 1 items )
Electrical connection 2, design
Round ( 1 items )
Electrical connection 2, connection type
Plug ( 1 items )
Electrical connection 2, cable outlet
Angled ( 1 items )
Electrical connection 2, connection technology
M9x0,5 ( 1 items )
Electrical connection 2, number of pins/wires
5 ( 1 items )
Electrical connection 2, occupied pins/wires
4 ( 1 items )
Electrical connection 2, type of mounting
Screw lock ( 1 items )
Operating voltage range DC
0-30V ( 1 items )
Acceptable current load at 40°C
3A ( 1 items )
Note on acceptable current load at 40°C
2.3 A for 0.34 mm². 3.6 A for 0.49 mm² ( 1 items )
Surge strength
0.5kV ( 1 items )
Cable length
2m ( 1 items )
Cable attribute
Suitable for chain link trunking ( 1 items )
Test conditions of cable
Test conditions on request ( 1 items )
Bending radius, flexible cable installation
>= 75 mmmm ( 1 items )
Cable diameter
5.5mm ( 1 items )
Cable structure
2x0,25+2x0,34+0,49. Shielded ( 1 items )
Nominal conductor cross-section
0.25. 0.34. 0.49mm2 ( 1 items )
Protection class
IP65. IP67 ( 1 items )
Note on degree of protection
in assembled condition ( 1 items )
Ambient temperature
-20-70°C ( 1 items )
Ambient temperature with flexible cable installation
-5-70°C ( 1 items )
Materials note
Conforms to RoHS ( 1 items )
Degree of contamination
1 ( 1 items )
Corrosion resistance classification CRC
1 - Low corrosion stress ( 1 items )
Material cable sheath
TPE-U(PUR) ( 1 items )
Cable sheath color
light grey ( 1 items )
Material housing
TPE-U(PUR) ( 1 items )
Housing color
Black ( 1 items )
Material screw-type lock
Nickel-plated brass ( 1 items )
Material electrical contact
Gold-plated bronze. Brass, gold-plated ( 1 items )
Material insulation
TPE-U(PUR) ( 1 items )
Connecting cables for controls - NEBP
Viewing 1 of 1
Connecting cables for controls - NEBP
connecting cable
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
575898

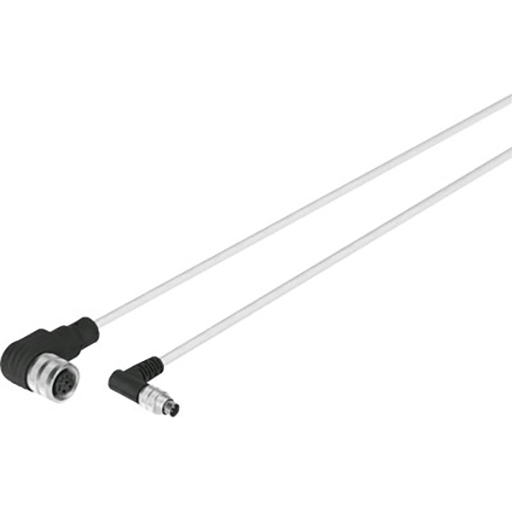

NEBP-M16W6-K-2-M9W5 connecting cable
134.36
Product Code
575898
Description
List Price (£)
134.36
Qty
