Section 19 - Festo
>
Electric cables and connectors
>
Connecting cables
>
Connecting cables for controls
>
NEBC
Refine Products
Attributes
Protocol
CANopen. DeviceNet ( 1 items )
Cable identification
with 2x label holders ( 1 items )
Connection frequency
100 ( 1 items )
Product weight
310.7g ( 1 items )
Electrical connection 1, function
Field device side ( 1 items )
Electrical connection 1, design
Round ( 1 items )
Electrical connection 1, connection type
Plug socket ( 1 items )
Electrical connection 1, cable outlet
Straight ( 1 items )
Electrical connection 1, connection technology
M12x1, A-coded in accordance with EN 61076-2-101 ( 1 items )
Electrical connection 1, number of pins/wires
5 ( 1 items )
Electrical connection 1, occupied pins/wires
5 ( 1 items )
Electrical connection 1, type of mounting
Screw lock ( 1 items )
Electrical connection 2, function
Controller side ( 1 items )
Electrical connection 2, connection type
Cable ( 1 items )
Electrical connection 2, connection technology
Open end ( 1 items )
Electrical connection 2, number of pins/wires
5 ( 1 items )
Electrical connection 2, occupied pins/wires
5 ( 1 items )
Operating voltage range DC
0-30V ( 1 items )
Acceptable current load at 40°C
4A ( 1 items )
Surge strength
2kV ( 1 items )
Cable length
5m ( 1 items )
Cable attribute
Suitable for chain link trunking ( 1 items )
Test conditions of cable
Test conditions on request ( 1 items )
Bending radius, fixed cable installation
>= 35 mmmm ( 1 items )
Bending radius, flexible cable installation
>= 70 mmmm ( 1 items )
Cable diameter
6.7mm ( 1 items )
Cable diameter tolerance
± 0,3 mm ( 1 items )
Cable structure
(2x0,34)+(2x0,25)+0,34. Shielded ( 1 items )
Nominal conductor cross-section
0.25. 0.34mm2 ( 1 items )
Wire ends
Sheath removed ( 1 items )
Protection class
IP65. IP67 ( 1 items )
Note on degree of protection
in assembled condition ( 1 items )
Ambient temperature
-25-80°C ( 1 items )
Ambient temperature with flexible cable installation
-20-80°C ( 1 items )
Materials note
Conforms to RoHS ( 1 items )
Degree of contamination
3 ( 1 items )
Material cable sheath
TPE-U(PUR) ( 1 items )
Cable sheath color
Red lilac ( 1 items )
Material housing
Reinforced TPE-U(PUR), ( 1 items )
Housing color
Black ( 1 items )
Material screw-type lock
Nickel-plated die-cast zinc ( 1 items )
Material seals
NBR ( 1 items )
Material electrical contact
Nickel-plated and gold-plated brass ( 1 items )
Material insulation
PE ( 1 items )
Connecting cables for controls - NEBC
Viewing 1 of 1
Connecting cables for controls - NEBC
connecting cable
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
8074191

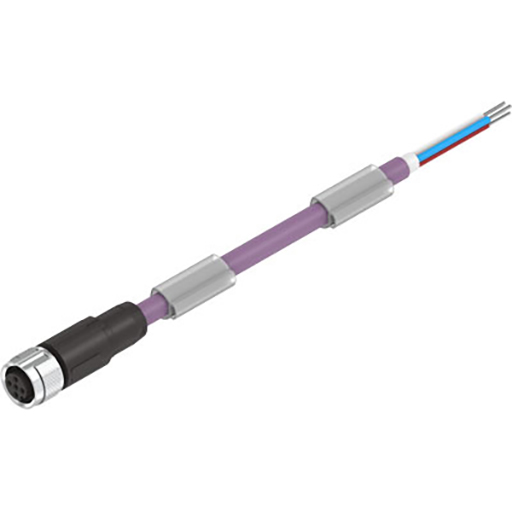

NEBC-M12G5-ES-5-LE5-CO connecting cable
59.09
Product Code
8074191
Description
List Price (£)
59.09
Qty
