Section 19 - Festo
>
Compressed air preparation
>
Regulators
>
Series MS
>
Electrical pressure regulators MS-LRE
>
MS6-LRE
Refine Products
Attributes
Size
6 ( 3 items )
Series
MS ( 3 items )
Assembly position
Any. Preferably vertical ( 3 items )
Design structure
Electrically adjustable pressure regulator ( 3 items )
Short circuit strength
for all electrical connections ( 3 items )
Controller function
Output pressure constant. with secondary exhaust. with initial pressure compensation ( 3 items )
Pressure gauge
with pressure gauge ( 3 items )
Working pressure
0.8-20bar ( 3 items )
Pressure regulation range
0.3-7bar ( 2 items )
0.5-12bar ( 1 items )
Max. pressure hysteresis
0.25bar ( 3 items )
Standard nominal flow rate
6500l/min ( 1 items )
3000l/min ( 1 items )
2700l/min ( 1 items )
Duration of control at 25°C
Max. 90 s ( 3 items )
Type of inputs
No electrical isolation. Per IEC 61131-2 ( 3 items )
Nominal operating voltage DC
24V ( 3 items )
Current consumption at nominal operating voltage
Max. 1 A ( 3 items )
Current consumption
max 3.5 A at 24 V DC ( 3 items )
Control duration/ interval ratio
1:3 ( 3 items )
Permissible voltage fluctuation
+/- 10 % ( 3 items )
CE symbol (see declaration of conformity)
according to EU-EMV guideline ( 3 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:4:4]. Inert gases ( 3 items )
Note on operating and pilot medium
Lubricated operation possible (subsequently required for further operation) ( 3 items )
Corrosion resistance classification CRC
2 - Moderate corrosion stress ( 3 items )
Storage temperature
-10-50°C ( 3 items )
Food-safe
See Supplementary material information ( 3 items )
Medium temperature
0-50°C ( 3 items )
Protection class
IP65 ( 3 items )
Ambient temperature
0-50°C ( 3 items )
Product weight
1280g ( 3 items )
Cable interface
Input: M12x1 plug, 5-pin ( 2 items )
Output: M8x1 plug, 3-pin. Input: M12x1 plug, 5-pin ( 1 items )
Mounting type
Line installation. with accessories. Optional ( 3 items )
Pneumatic connection, port 1
G1/2 ( 1 items )
G1/4 ( 2 items )
Pneumatic connection, port 2
G1/2 ( 1 items )
G1/4 ( 2 items )
Material seals
NBR ( 3 items )
Material housing
Aluminum die cast ( 3 items )
Material membrane
NBR ( 3 items )
Analog output
0 - 10 V ( 1 items )
Analog outputs, absolute accuracy at 25° C
± 3% ( 1 items )
Electrical pressure regulators MS-LRE - MS6-LRE
Viewing 3 of 3
Electrical pressure regulators MS-LRE - MS6-LRE

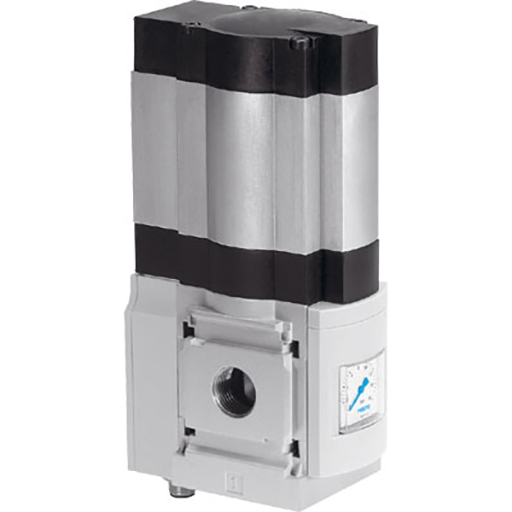

electrical pressure regulator
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
535364
MS6-LRE-1/4-D7 electrical pressure regulator
482.58
535362
MS6-LRE-1/4-D6-PU electrical pressure regulator
557.29
535348
MS6-LRE-1/2-D6 electrical pressure regulator
482.58
Product Code
535364
Description
List Price (£)
482.58
Qty
Product Code
535362
Description
List Price (£)
557.29
Qty
Product Code
535348
Description
List Price (£)
482.58
Qty
