Flowtechnology
>
Sectors
>
Section 19 - Festo
>
Compressed air preparation
>
Regulators
>
D series, polymer design
>
Pressure regulators LR-DB
Refine Products
Attributes
Size
Mini ( 2 items )
Width
44mm ( 2 items )
Series
DB ( 2 items )
Actuator lock
Rotary knob with lock ( 2 items )
Assembly position
Any ( 2 items )
Design structure
Pressure regulator without pressure gauge ( 1 items )
Pressure regulator with gauge ( 1 items )
Controller function
with return flow. with secondary exhaust ( 2 items )
Pressure gauge
Prepared for G1/8 ( 1 items )
with pressure gauge ( 1 items )
Working pressure
1.5-10bar ( 2 items )
Pressure regulation range
0.5-7bar ( 2 items )
Max. pressure hysteresis
0.5bar ( 2 items )
Standard nominal flow rate
>= 1300 l/minl/min ( 2 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:4:4] ( 2 items )
Note on operating and pilot medium
Lubricated operation possible (subsequently required for further operation) ( 2 items )
Corrosion resistance classification CRC
1 - Low corrosion stress ( 2 items )
Air purity class at output
Compressed air in accordance with ISO8573-1:2010 [7:4:4] ( 2 items )
Medium temperature
-5-50°C ( 2 items )
Ambient temperature
-5-50°C ( 2 items )
Product weight
150g ( 2 items )
Mounting type
Front panel installation. Line installation. with through hole. With mounting bracket. Optional ( 2 items )
Pressure gauge connection
G1/8 ( 2 items )
Pneumatic connection, port 1
G1/4 ( 2 items )
Pneumatic connection, port 2
G1/4 ( 2 items )
Materials note
Conforms to RoHS ( 2 items )
Material seals
NBR ( 2 items )
Material rotary knob
POM ( 2 items )
Material housing
PA-reinforced ( 2 items )
D series, polymer design - Pressure regulators LR-DB
Viewing 2 of 2

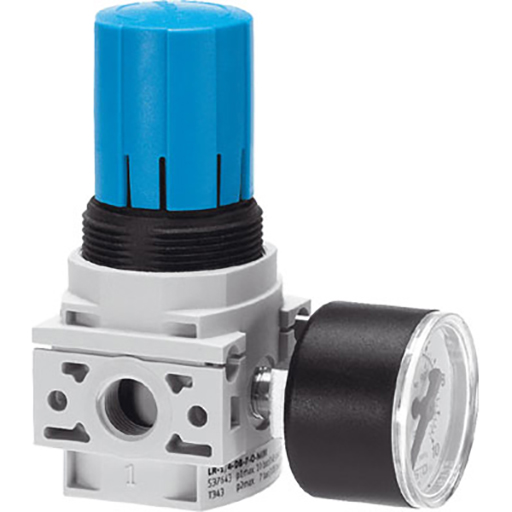

D series, polymer design - Pressure regulators LR-DB
pressure regulator
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
537643
LR-1/4-DB-7-O-MINI pressure regulator
29.54
539682
LR-1/4-DB-7-MINI pressure regulator
37.27
Product Code
537643
Description
List Price (£)
29.54
Qty
Product Code
539682
Description
List Price (£)
37.27
Qty
