Flowtechnology
>
Sectors
>
Section 19 - Festo
>
Compressed air preparation
>
Condensate drain
>
PWEA, electric
Refine Products
Attributes
Type of actuation
electrical ( 3 items )
Assembly position
Vertical +/- 5° ( 3 items )
Manual override
Pushing ( 3 items )
Condensate drain
fully automatic ( 3 items )
Design structure
External, electrical, fully automated ( 3 items )
Measured variable
Fill-level ( 3 items )
Valve function
3/2 closed, monostable ( 3 items )
Control elements
Membrane keypad. With test key ( 3 items )
Ready status display
LED ( 3 items )
Operating status display
LED ( 3 items )
Working pressure
0.8-16bar ( 3 items )
Alarm output
Contact-type ( 3 items )
Nominal operating voltage, AC
115V ( 1 items )
230V ( 1 items )
Nominal capacity, condensate drain
2VA ( 2 items )
2W ( 1 items )
Line frequency
50-60Hz ( 2 items )
Authorization
C-Tick ( 3 items )
KC mark
KC-EMV ( 3 items )
CE symbol (see declaration of conformity)
according to EU-EMV guideline. according to EU low voltage guideline ( 2 items )
according to EU-EMV guideline ( 1 items )
Operating medium
Compressed air in accordance with ISO8573-1:2010 [-:-:-] ( 3 items )
Corrosion resistance classification CRC
2 - Moderate corrosion stress ( 3 items )
Storage temperature
-10-60°C ( 3 items )
Medium temperature
1-60°C ( 3 items )
Protection class
IP65. to IEC 60529 ( 3 items )
Safety class
III ( 3 items )
Ambient temperature
1-60°C ( 3 items )
Product weight
700g ( 3 items )
Electrical connection
Screwed terminal ( 3 items )
Mounting type
Line installation ( 3 items )
Condensate drain connection
PK-8 ( 3 items )
Pneumatic connection
G1/2 ( 3 items )
Material of condensate reservoir
Wrought Aluminum alloy ( 3 items )
Materials note
Conforms to RoHS ( 3 items )
Material housing
Plastic ( 3 items )
Nominal operating voltage DC
24V ( 1 items )
Condensate drain - PWEA, electric
Viewing 3 of 3

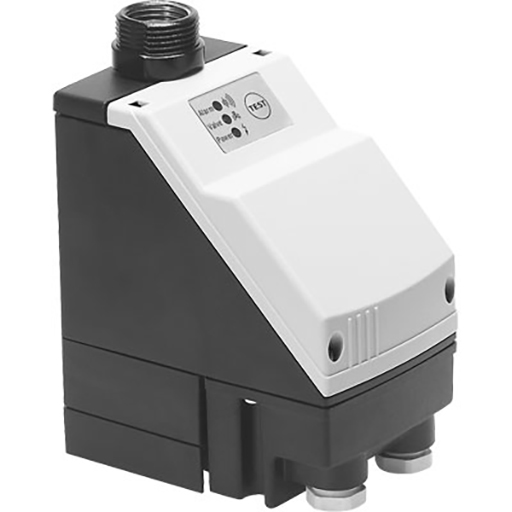

Condensate drain - PWEA, electric
condensate drain
Product Information
Product Information
Product Code
Description
Product Info
List Price (£)
Qty
538680
PWEA-AC-7A condensate drain
453.40
538679
PWEA-AC-6A condensate drain
453.40
538681
PWEA-AC-3D condensate drain
453.40
Product Code
538680
Description
List Price (£)
453.40
Qty
Product Code
538679
Description
List Price (£)
453.40
Qty
Product Code
538681
Description
List Price (£)
453.40
Qty
