B35 Foot and Flange Mounting

IE3 Rated, SWEA Series, Aluminium, 3 Phase, Wonder Power - B35 Foot and Flange Mounting

Viewing 12 of 12

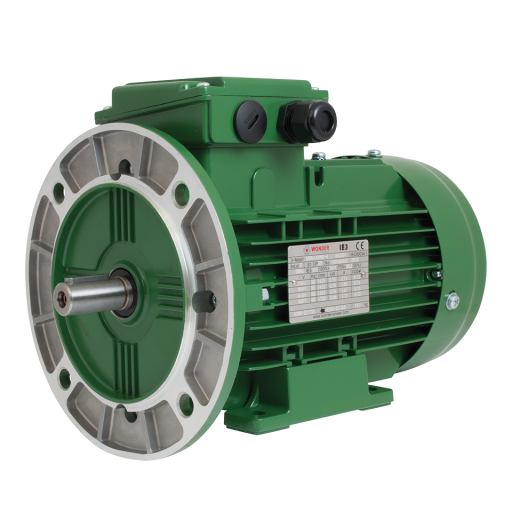

Three Phase Premium Efficiency TEFC Aluminium Induction Motor Strong, lightweight and corrosion resistant, Wonderpower aluminium electric motors are ideal for use in many applications such as power packs. [B]SWEA series range includes:[B] [B]Frame size:[B] 80-180 [B]Output power:[B] 0.75kW-22kW [B]No. of poles:[B] 2, 4, 6, 8 [B]Degree of protection: [B]IP55, IP56, IP65, IP66 [B]Voltage:[B] rated voltage 400V, from 220V to 690V may be supplied on request [B]Frequency:[B] 50Hz or 60Hz [B]Insulation class:[B] “F”class as standard, (“H” class is available upon request) [B]Temperature:[B] Class B (80K) [B]Enclosure: [B]TEFC [B]Bearing:[B] SKF/NTN/NSK [B]Basic type of construction: [B] B3, B5,B35, B14, B34 [B]Cooling method:[B] IC411 [B]IE3 efficiency testing method: [B] IEC60034-2-1;2007 Other options can be offered as required: Thermal sensors: PTC, PT100 for windings and/or bearings Space heater for anti-humidity Driving application: NU roller bearings, angular contact bearings, insulated bearings Cast iron DE cover: for larger bearings and more stable running Paint suitable for hazardous environments including high humidity and highly salty areas Stainless steel shaft: stronger rigidity, anti-corrosion Terminal box: from D-end, can be on top, right or left (due to flexible feet mounting) Cable gland and blind cap: plastic, copper, steel or stainless steel, fly lead IP56, IP65, IP66 Power factor: 1.0, 1.15, 1.25 IC410, TENV enclosure H insulation class for higher temperature environments Rain canopy FDF unit Tropicalisation

Product Information

TECH SHEET - TS10776

Product Code	Description	List Price (£)
SWEA80M2-4	0.75 80M2 SWEA80M2-4 0.75KW 400/3/50 B35	174.48
SWEA90S-4	1.1 90S SWEA90S-4 1.1KW 400/3/50 B35	293.30
SWEA90L-4	1.5 90L SWEA90L-4 1.5KW 400/3/50 B35	279.58
SWEA100L1-4	2.2 100L1 SWEA100L1-4 2.2KW 400/3/50 B35	355.60
SWEA100L2-4	3 100L2 SWEA100L2-4 3.0KW 400/3/50 B35	410.58
SWEA112M-4	4 112M SWEA112M-4 4.0KW 400/3/50 B35	440.93
SWEA132S-4	5.5 132S SWEA132S-4 5.5KW 400/3/50 B35	629.31
SWEA132M-4	7.5 132M SWEA132M-4 7.5KW 400/3/50 B35	715.97
SWEA160M-4	11 160M SWEA160M-4 11.0KW 400/3/50 B35	1,269.66
SWEA160L-4	15 160L SWEA160L-4 15.0KW 400/3/50 B35	1,456.63
SWEA180M-4	18.5 180M SWEA180M-4 18.5KW 400/3/50 B35	1,769.13
SWEA180L-4	22 180L SWEA180L-4 22.0KW 400/3/50 B35	1,918.86

Product Code SWEA80M2-4 Description 0.75 80M2 SWEA80M2-4 0.75KW 400/3/50 B35 List Price (£) 174.48 Qty
Product Code SWEA90S-4 Description 1.1 90S SWEA90S-4 1.1KW 400/3/50 B35 List Price (£) 293.30 Qty
Product Code SWEA90L-4 Description 1.5 90L SWEA90L-4 1.5KW 400/3/50 B35 List Price (£) 279.58 Qty
Product Code SWEA100L1-4 Description 2.2 100L1 SWEA100L1-4 2.2KW 400/3/50 B35 List Price (£) 355.60 Qty
Product Code SWEA100L2-4 Description 3 100L2 SWEA100L2-4 3.0KW 400/3/50 B35 List Price (£) 410.58 Qty
Product Code SWEA112M-4 Description 4 112M SWEA112M-4 4.0KW 400/3/50 B35 List Price (£) 440.93 Qty
Product Code SWEA132S-4 Description 5.5 132S SWEA132S-4 5.5KW 400/3/50 B35 List Price (£) 629.31 Qty
Product Code SWEA132M-4 Description 7.5 132M SWEA132M-4 7.5KW 400/3/50 B35 List Price (£) 715.97 Qty
Product Code SWEA160M-4 Description 11 160M SWEA160M-4 11.0KW 400/3/50 B35 List Price (£) 1,269.66 Qty
Product Code SWEA160L-4 Description 15 160L SWEA160L-4 15.0KW 400/3/50 B35 List Price (£) 1,456.63 Qty
Product Code SWEA180M-4 Description 18.5 180M SWEA180M-4 18.5KW 400/3/50 B35 List Price (£) 1,769.13 Qty
Product Code SWEA180L-4 Description 22 180L SWEA180L-4 22.0KW 400/3/50 B35 List Price (£) 1,918.86 Qty
