B35 Foot and Flange Mounitng

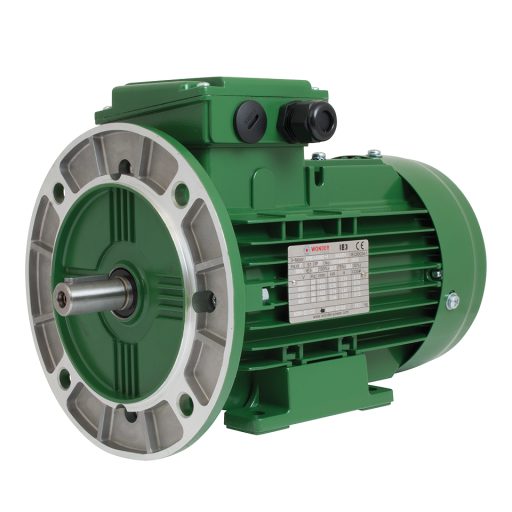

IE3 Rated, SWE Series, Cast Iron, 3 Phase, Wonder Power - B35 Foot and Flange Mounitng

Viewing 13 of 13

[B]Three Phase Premium Efficiency Asynchronous Motor[B] Strong, resistant to deformation and wear, Wonderpower cast iron electric motors are ideal for use in many applications including marine equipment, machinery and air compressors. [B]SWE series range includes:[B] [B]Frame size:[B] 160-355 [B]Output power:[B] 7.5kW-315kW [B]No. of poles:[B] 2, 4, 6, 8 [B]Degree of protection: [B]IP55, IP56, IP65, IP66 [B]Voltage:[B] rated voltage 400V, from 220V to 690V may be supplied on request [B]Frequency:[B] 50Hz or 60Hz [B]Insulation class:[B] “F”class as standard, (“H” class is available upon request) [B]Temperature:[B] Class B (80K) [B]Enclosure:[B] TEFC [B]Bearing:[B] SKF/NTN/NSK [B]Basic type of construction: [B] B3, B5,B35, B14, B34 [B]Cooling method:[B] IC411 [B]IE3 efficiency testing method: [B] IEC60034-2-1;2007 AS/NZS 1359.5:2004 HEFF-B, testing Method B Other options can be offered as required: Thermal sensors: PTC, PT100 for windings and/or bearings Space heater for anti-humidity Driving application: NU roller bearings, angular contact bearings, insulated bearings Paint suitable for hazardous environments including high humidity and highly salty areas Stainless steel shaft: stronger rigidity, anti-corrosion Terminal box: from D-end, can be on top, right or left Cable gland and blind cap: plastic, copper, steel or stainless steel, fly lead IP56, IP65, IP66 Power factor: 1.0, 1.15, 1.25 IC410, TENV enclosure H insulation class for higher temperature environments Rain canopy FDF unit Tropicalisation

Product Information

TECH SHEET - TS10776

Product Code	Description	List Price (£)
SWE160M-4	11 160M SWE160M-4 11.0KW 400/3/50 B35	1,222.22
SWE160L-4	15 160L SWE160L-4 15.0KW 400/3/50 B35	1,458.73
SWE180M-4	18.5 180M SWE180M-4 18.5KW 400/3/50 B35	1,797.78
SWE180L-4	22 180L SWE180L-4 22.0KW 400/3/50 B35	1,896.65
SWE200L-4	30 200L SWE200L-4 30.0KW 400/3/50 B35	2,446.13
SWE225S-4	37 225S SWE225S-4 37.0KW 400/3/50 B35	3,037.75
SWE225M-4	45 225M SWE225M-4 45.0KW 400/3/50 B35	3,401.33
SWE250M-4	55 250M SWE250M-4 55.0KW 400/3/50 B35	3,847.44
SWE280S-4	75 280S SWE280S-4 75.0KW 400/3/50 B35	5,554.85
SWE280M-4	90 280M SWE280M-4 90.0KW 400/3/50 B35	6,404.41
SWE315S-4	110 315S SWE315S-4 110.0KW 400/3/50 B35	10,644.48
SWE315M-4	132 315M SWE315M-4 132.0KW 400/3/50 B35	11,262.45
SWE315L1-4	160 315L1 SWE315L1-4 160KW 400/3/50 B35	12,391.34

Product Code SWE160M-4 Description 11 160M SWE160M-4 11.0KW 400/3/50 B35 List Price (£) 1,222.22 Qty
Product Code SWE160L-4 Description 15 160L SWE160L-4 15.0KW 400/3/50 B35 List Price (£) 1,458.73 Qty
Product Code SWE180M-4 Description 18.5 180M SWE180M-4 18.5KW 400/3/50 B35 List Price (£) 1,797.78 Qty
Product Code SWE180L-4 Description 22 180L SWE180L-4 22.0KW 400/3/50 B35 List Price (£) 1,896.65 Qty
Product Code SWE200L-4 Description 30 200L SWE200L-4 30.0KW 400/3/50 B35 List Price (£) 2,446.13 Qty
Product Code SWE225S-4 Description 37 225S SWE225S-4 37.0KW 400/3/50 B35 List Price (£) 3,037.75 Qty
Product Code SWE225M-4 Description 45 225M SWE225M-4 45.0KW 400/3/50 B35 List Price (£) 3,401.33 Qty
Product Code SWE250M-4 Description 55 250M SWE250M-4 55.0KW 400/3/50 B35 List Price (£) 3,847.44 Qty
Product Code SWE280S-4 Description 75 280S SWE280S-4 75.0KW 400/3/50 B35 List Price (£) 5,554.85 Qty
Product Code SWE280M-4 Description 90 280M SWE280M-4 90.0KW 400/3/50 B35 List Price (£) 6,404.41 Qty
Product Code SWE315S-4 Description 110 315S SWE315S-4 110.0KW 400/3/50 B35 List Price (£) 10,644.48 Qty
Product Code SWE315M-4 Description 132 315M SWE315M-4 132.0KW 400/3/50 B35 List Price (£) 11,262.45 Qty
Product Code SWE315L1-4 Description 160 315L1 SWE315L1-4 160KW 400/3/50 B35 List Price (£) 12,391.34 Qty
