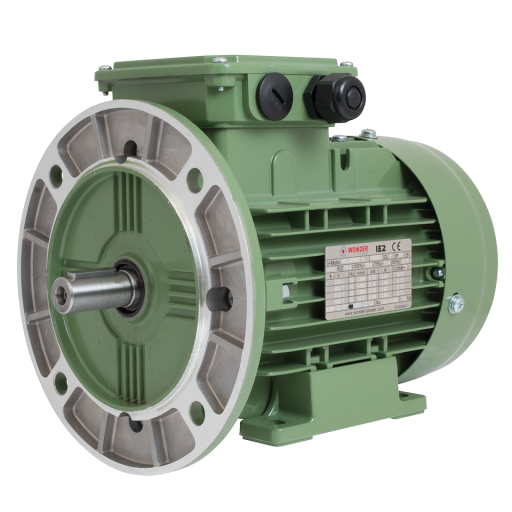

B35 Foot and Flange Mounting, 4 Pole

IE2 Rated, WEA Series, Aluminium, 3 Phase, Wonder Power - B35 Foot and Flange Mounting, 4 Pole

Viewing 14 of 14

Three Phase High Efficiency TEFC Aluminium Induction Motor WEA range includes: Frame size: 71-180 Output power: 0.37kw-22kw No. of poles: 2, 4, 6, 8 Degree of protection: IP55, IP56, IP65, IP66 Voltage: rated voltage 400V, from 220V to 690V may be supplied on request Frequency: 50hz or 60hz Insulation Class: “F”class as standard, “H” class is available upon request Temperature: Class B (80K) Enclosure: TEFC Bearing: SKF/NTN/NSK Basic type of construction: B3, B5,B35, B14, B34 Cooling method: IC411 IE2 Efficiency testing method: IEC60034-2-1;2007 Other options can be offered as required: Thermal sensors: PTC, PT100 for windings and/or bearings Space heater for anti-humidity Driving application: NU roller bearings, angular contact bearings, insulated bearing Cast iron DE cover: for larger bearings and more stable running Special painting: for hazardous environment such as highly humidity, highly salty area Stainless steel shaft: stronger rigidity, anti-corruption Terminal box: from D-end, can be on top, right and left (because of flexible feet mounting) Cable gland and blind cap: plastic, copper, steel, stainless steel, fly lead IP56, IP65, IP66 Power factor: 1.0, 1.15, 1.25 IC410, TENV enclosure H insulation class, higher environment temperature Thermistors fitted as standard Drip proof cowl and rain canopy FDF unit Tropicalisation

Product Information

TECH SHEET - TS10727

Product Code	Description	List Price (£)
WEA712-4	0.37 71 WEA712-4 0.37KW 400/3/50 B35T	91.05
WEA801-4	0.55 80M1 WEA80M1-4 0.55KW 400/3/50 B35T	142.42
WEA802-4	0.75 80M2 WEA80M2-4 0.75KW 400/3/50 B35	171.66
WEA90S-4	1.1 90S WEA90S-4 1.1KW 400/3/50 B35	258.40
WEA90L-4	1.5 90L WEA90L-4 1.5KW 400/3/50 B35	234.41
WEA100L1-4	2.2 100L1 WEA100L1-4 2.2KW 400/3/50 B35	308.78
WEA100L2-4	3 100L2 WEA100L2-4 3.0KW 400/3/50 B35	323.50
WEA112M-4	4 112M WEA112M-4 4.0KW 400/3/50 B35	395.35
WEA132S-4	5.5 132S WEA132S-4 5.5KW 400/3/50 B35	548.69
WEA132M-4	7.5 132M WEA132M-4 7.5KW 400/3/50 B35	632.58
WEA160M-4	11.0 160M WEA160M-4 11.0KW 400/3/50 B35T	1,052.20
WEA160L-4	15.0 160L WEA160L-4 15.0KW 400/3/50 B35T	1,259.73
WEA180M-4	18.5 180M WEA180M-4 18.5KW 400/3/50 B35T	1,453.89
WEA180L-4	22.0 180L WEA180L-4 22.0KW 400/3/50 B35T	1,597.50

Product Code WEA712-4 Description 0.37 71 WEA712-4 0.37KW 400/3/50 B35T List Price (£) 91.05 Qty
Product Code WEA801-4 Description 0.55 80M1 WEA80M1-4 0.55KW 400/3/50 B35T List Price (£) 142.42 Qty
Product Code WEA802-4 Description 0.75 80M2 WEA80M2-4 0.75KW 400/3/50 B35 List Price (£) 171.66 Qty
Product Code WEA90S-4 Description 1.1 90S WEA90S-4 1.1KW 400/3/50 B35 List Price (£) 258.40 Qty
Product Code WEA90L-4 Description 1.5 90L WEA90L-4 1.5KW 400/3/50 B35 List Price (£) 234.41 Qty
Product Code WEA100L1-4 Description 2.2 100L1 WEA100L1-4 2.2KW 400/3/50 B35 List Price (£) 308.78 Qty
Product Code WEA100L2-4 Description 3 100L2 WEA100L2-4 3.0KW 400/3/50 B35 List Price (£) 323.50 Qty
Product Code WEA112M-4 Description 4 112M WEA112M-4 4.0KW 400/3/50 B35 List Price (£) 395.35 Qty
Product Code WEA132S-4 Description 5.5 132S WEA132S-4 5.5KW 400/3/50 B35 List Price (£) 548.69 Qty
Product Code WEA132M-4 Description 7.5 132M WEA132M-4 7.5KW 400/3/50 B35 List Price (£) 632.58 Qty
Product Code WEA160M-4 Description 11.0 160M WEA160M-4 11.0KW 400/3/50 B35T List Price (£) 1,052.20 Qty
Product Code WEA160L-4 Description 15.0 160L WEA160L-4 15.0KW 400/3/50 B35T List Price (£) 1,259.73 Qty
Product Code WEA180M-4 Description 18.5 180M WEA180M-4 18.5KW 400/3/50 B35T List Price (£) 1,453.89 Qty
Product Code WEA180L-4 Description 22.0 180L WEA180L-4 22.0KW 400/3/50 B35T List Price (£) 1,597.50 Qty
