B3 Foot Mounting, 2 pole

IE2 Rated, WEA Series, Aluminium, 3 Phase, Wonder Power - B3 Foot Mounting, 2 pole

Viewing 14 of 14

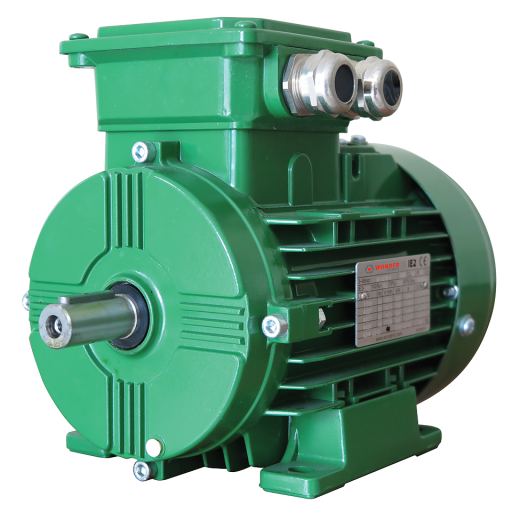

Three Phase High Efficiency TEFC Aluminium Induction Motor WEA range includes: Frame size: 80-180 Output power: 0.37kw-22kw No. of poles: 2, 4, 6, 8 Degree of protection: IP55, IP56, IP65, IP66 Voltage: rated voltage 400V, from 220V to 690V may be supplied on request Frequency: 50hz or 60hz Insulation Class: “F”class as standard, “H” class is available upon request Temperature: Class B (80K) Enclosure: TEFC Bearing: SKF/NTN/NSK Basic type of construction: B3, B5,B35, B14, B34 Cooling method: IC411 IE2 Efficiency testing method: IEC60034-2-1;2007 Other options can be offered as required: Thermal sensors: PTC, PT100 for windings and/or bearings Space heater for anti-humidity Driving application: NU roller bearings, angular contact bearings, insulated bearing Cast iron DE cover: for larger bearings and more stable running Special painting: for hazardous environment such as highly humidity, highly salty area Stainless steel shaft: stronger rigidity, anti-corruption Terminal box: from D-end, can be on top, right and left (because of flexible feet mounting) Cable gland and blind cap: plastic, copper, steel, stainless steel, fly lead IP56, IP65, IP66 Power factor: 1.0, 1.15, 1.25 IC410, TENV enclosure H insulation class, higher environment temperature Thermistors fitted as standard Drip proof cowl and rain canopy FDF unit Tropicalisation

Product Information

TECH SHEET - TS10727

Product Code	Description	List Price (£)
WEA711-2-B3	0.37 71 WEA711-2 0.37KW 400/3/50 B3T	86.41
WEA712-2-B3	0.55 71 WEA712-2 0.55KW 400/3/50 B3T	90.67
WEA801-2-B3	0.75 80M1 WEA80M1-2 0.75KW 400/3/50 B3T	131.33
WEA802-2-B3	1.1 80M2 WEA80M2-2 1.1KW 400/3/50 B3T	147.63
WEA90S-2-B3	1.5 90S WEA90S-2 1.5KW 400/3/50 B3T	192.59
WEA90L-2-B3	2.2 90L WEA90L-2 2.2KW 400/3/50 B3T	215.01
WEA100L-2-B3	3 100L WEA100L-2 3.0KW 400/3/50 B3T	298.44
WEA112M-2-B3	4 112M WEA112M-2 4.0KW 400/3/50 B3T	338.19
WEA132S1-2-B3	5.5 132S1 WEA132S1-2 5.5KW 400/3/50 B3T	485.61
WEA132S2-2-B3	7.5 132S2 WEA132S2-2 7.5KW 400/3/50 B3T	518.41
WEA160M1-2-B3	11.0 160M1 WEA160M1-2 11.0KW 400/3/50 B3T	928.61
WEA160M2-2-B3	15.0 160M2 WEA160M2-2 15.0KW 400/3/50 B3T	1,003.85
WEA160L-2-B3	18.5 160L WEA160L-2 18.5KW 400/3/50 B3T	1,129.51
WEA180M-2-B3	22.0 180M WEA180M-2 22.0KW 400/3/50 B3T	1,395.77

Product Code WEA711-2-B3 Description 0.37 71 WEA711-2 0.37KW 400/3/50 B3T List Price (£) 86.41 Qty
Product Code WEA712-2-B3 Description 0.55 71 WEA712-2 0.55KW 400/3/50 B3T List Price (£) 90.67 Qty
Product Code WEA801-2-B3 Description 0.75 80M1 WEA80M1-2 0.75KW 400/3/50 B3T List Price (£) 131.33 Qty
Product Code WEA802-2-B3 Description 1.1 80M2 WEA80M2-2 1.1KW 400/3/50 B3T List Price (£) 147.63 Qty
Product Code WEA90S-2-B3 Description 1.5 90S WEA90S-2 1.5KW 400/3/50 B3T List Price (£) 192.59 Qty
Product Code WEA90L-2-B3 Description 2.2 90L WEA90L-2 2.2KW 400/3/50 B3T List Price (£) 215.01 Qty
Product Code WEA100L-2-B3 Description 3 100L WEA100L-2 3.0KW 400/3/50 B3T List Price (£) 298.44 Qty
Product Code WEA112M-2-B3 Description 4 112M WEA112M-2 4.0KW 400/3/50 B3T List Price (£) 338.19 Qty
Product Code WEA132S1-2-B3 Description 5.5 132S1 WEA132S1-2 5.5KW 400/3/50 B3T List Price (£) 485.61 Qty
Product Code WEA132S2-2-B3 Description 7.5 132S2 WEA132S2-2 7.5KW 400/3/50 B3T List Price (£) 518.41 Qty
Product Code WEA160M1-2-B3 Description 11.0 160M1 WEA160M1-2 11.0KW 400/3/50 B3T List Price (£) 928.61 Qty
Product Code WEA160M2-2-B3 Description 15.0 160M2 WEA160M2-2 15.0KW 400/3/50 B3T List Price (£) 1,003.85 Qty
Product Code WEA160L-2-B3 Description 18.5 160L WEA160L-2 18.5KW 400/3/50 B3T List Price (£) 1,129.51 Qty
Product Code WEA180M-2-B3 Description 22.0 180M WEA180M-2 22.0KW 400/3/50 B3T List Price (£) 1,395.77 Qty
