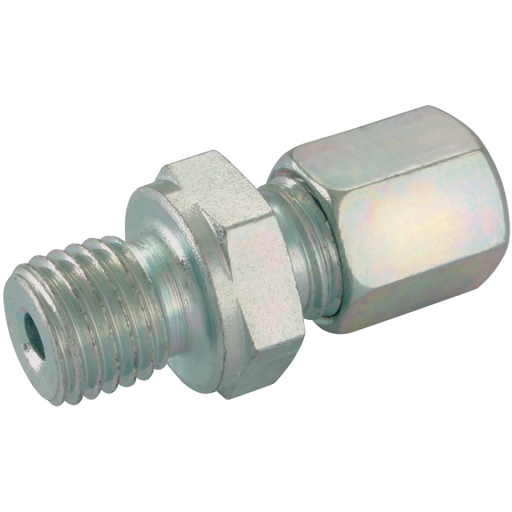

Metric Male Form B x Tube, Light Duty

Male Stud Couplings, Eaton Walterscheid - Metric Male Form B x Tube, Light Duty

Viewing 18 of 18

Cutting Ring Couplings DIN 2353/ISO 8434-1 WALTERSCHEID Hydraulic BITE TYPE Fittings WALTERSCHEID offer a complete product range & highest quality: Based on this principle WALTERSCHEID offers one of the most comprehensive product ranges for tube coupling systems. The WALTERSCHEID programme includes cutting ring, soft seal, flared couplings & flange couplings, plus a wide range of accessories. The WALTERSCHEID range of hydraulic compression fittings cover sizes from 6mm od to 42mm od in light duty & from 6mm od to 38mm od in heavy duty. Manufactured to DIN 2353 standard, mild steel with C6F free surface coating, each compression fitting is supplied complete with cutting ring & nut. Pressure Range Guide: Light Duty 6mm OD-18mm OD = 400 bar 22mm OD-42mm OD = 250 bar Heavy Duty 6mm OD-14mm OD = 400 bar 16mm OD-30mm OD = 630 bar 38mm OD = 250 bar These pressures are for guide purposes only & please consult our technical department for specific applications.

Product Information

TECH SHEET - TS1662

Product Code	Description	List Price (£)
GEV6LM12X1.5	M12 x 1.5 6 400	11.50
GEV8LM	M12 x 1.5 8 400	2.06
GEV10LM	M14 x 1.5 10 400	2.23
GEV8LM16X1.5	M16 x 1.5 8 400	6.94
GEV10LM16X1.5	M16 x 1.5 10 400	4.51
GEV12LM	M16 x 1.5 12 400	3.02
GEV10LM18X1.5	M18 x 1.5 10 400	6.07
GEV12LM18X1.5	M18 x 1.5 12 400	5.53
GEV15LM	M18 x 1.5 15 400	3.59
GEV18LM18X1.5	M18 x 1.5 18 400	5.61
GEV10LM22X1.5	M22 x 1.5 10 400	11.46
GEV12LM22X1.5	M22 x 1.5 12 400	6.28
GEV15LM22X1.5	M22 x 1.5 15 400	6.72
GEV18LM	M22 x 1.5 18 400	5.29
GEV22LM	M26 x 1.5 22 250	7.64
GEV28LM	M33 x 2 28 250	13.25
GEV35LM	M42 x 2 35 250	21.17
GEV42LM	M48 x 2 42 250	23.84

Product Code GEV6LM12X1.5 Description M12 x 1.5 6 400 List Price (£) 11.50 Qty
Product Code GEV8LM Description M12 x 1.5 8 400 List Price (£) 2.06 Qty
Product Code GEV10LM Description M14 x 1.5 10 400 List Price (£) 2.23 Qty
Product Code GEV8LM16X1.5 Description M16 x 1.5 8 400 List Price (£) 6.94 Qty
Product Code GEV10LM16X1.5 Description M16 x 1.5 10 400 List Price (£) 4.51 Qty
Product Code GEV12LM Description M16 x 1.5 12 400 List Price (£) 3.02 Qty
Product Code GEV10LM18X1.5 Description M18 x 1.5 10 400 List Price (£) 6.07 Qty
Product Code GEV12LM18X1.5 Description M18 x 1.5 12 400 List Price (£) 5.53 Qty
Product Code GEV15LM Description M18 x 1.5 15 400 List Price (£) 3.59 Qty
Product Code GEV18LM18X1.5 Description M18 x 1.5 18 400 List Price (£) 5.61 Qty
Product Code GEV10LM22X1.5 Description M22 x 1.5 10 400 List Price (£) 11.46 Qty
Product Code GEV12LM22X1.5 Description M22 x 1.5 12 400 List Price (£) 6.28 Qty
Product Code GEV15LM22X1.5 Description M22 x 1.5 15 400 List Price (£) 6.72 Qty
Product Code GEV18LM Description M22 x 1.5 18 400 List Price (£) 5.29 Qty
Product Code GEV22LM Description M26 x 1.5 22 250 List Price (£) 7.64 Qty
Product Code GEV28LM Description M33 x 2 28 250 List Price (£) 13.25 Qty
Product Code GEV35LM Description M42 x 2 35 250 List Price (£) 21.17 Qty
Product Code GEV42LM Description M48 x 2 42 250 List Price (£) 23.84 Qty
